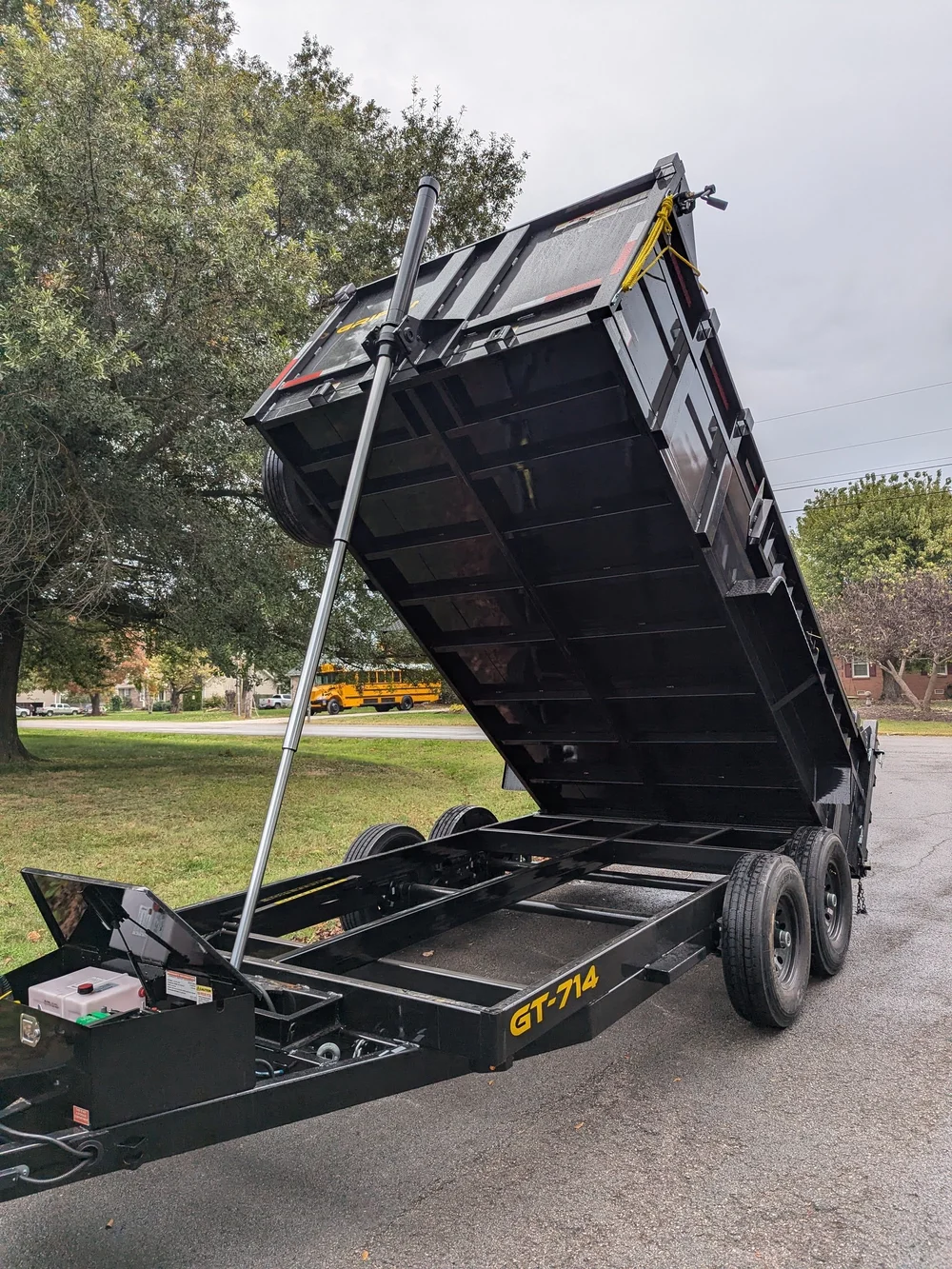

This trailer has a 3 stage telescopic hydraulic cylinder at the front of the bed providing extreme dump leverage. Perfect for hauling soil, gravel, or trash to the dump. Ramps included and large enough to haul any skid steer with welded tie downs in the bed. The dump capacity of the trailer is 10,000 lbs., making it suitable for handling heavy loads. The rear gate is a 2-way combination spreader / barn gate. 14-ply tires for trouble free service.
Size of ball required: 2 5/16”
Lighting Connector: 7 way Round
2 Braking Axles
Tie Downs: Stake Pockets and welded D-rings inside the box
Maximum allowable tire pressure: 100 PSI
Approximate ball height to tow level: 19” Lower is ok, Higher can be problematic
Trailer Weight: 4,600 LBS
Maximum Cargo Capacity: 11,400 LBS
Box Dimensions: 82” Wide x 170” Long x 48” Tall Sides (Top 12” Removable for loading)
Floor Height is 29” for convenient loading and unloading
